Polybutylene Naphthalate (PBN) Resin

Introduction and Features

A crystalline resin formed by the polycondensation of NDC (naphthalene dicarboxilic acid) and 1, 4-butanediol.

Features

This resin has the following unique features thanks to naphthalene skeleton derived from NDC.

  1. 1.Excellent abrasion property
  2. 2.Low elution performance
  3. 3.Excellent chemical resistance
  4. 4.Excellent barrier performance against gas and water vapor
  5. 5.Fast in crystallization speed

Grade Lists

General properties

Property Unit Measurement method Measurement condition PBN PBT
Specific gravity g/cm3 ASTM D792 - 1.31 1.31
Molding shrinkage
(1.5mm)
% In-house method Machine direction 1.16 1.67
Transverse direction 1.26 1.67
Tensile strength (max.) MPa ASTM D638 - 65 52
Tensile elongation (max.) % ASTM D638 - 87 >200
Flexural modulus MPa ASTM D790 - 1,920 2,550
Inpact strength
(1/8 inches)
J/m ASTM D256 Noched 34 34
Un-noched NB NB
Surface hardness - ASTM D785 Rockwell M102 M75
Melting point DSC method - 243 225
Glass transition temperature DSC method - 78 22
Deflection temperature under load ASTM D648 Load : 1.82MPa 77 58
  • *Figures described in this table are representative values, not the values for guaranteeing the performance under specific application.
    Meanwhile, the contents are subject to revision without prior notice.

Engineering Service

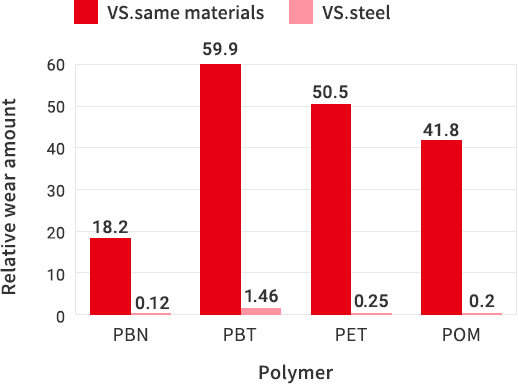

Abrasion property

Test conditions
Against the same material Against steel
Load 5kg/m2 5kg/m2
Speed 0.2m/sec 0.5m/sec
Running distance 180m 450m

Chemical resistance

Organic solvent
Chemical type PBN PPS PEEK PES PET PBT
Ethylenediamine A A A D D D
Ethanol A A A A A A
Ethyl acetate A A A B B B
Toluene A A A A A B
Acetone A A A D C B
Xylene A A A A A A
Alkali (PH14)
Chemical type PBN PPS PEEK PES PET PBT
Ammonia water A A A A D A
Hydroxylation Na 10% A A A A B A
Hydroxylation Na 30% A A A A B B
Acid (PH1)
Chemical type PBN PPS PEEK PES PET PBT
Formic acid A A A B C C
Acetic acid A A A A B B
Concentrated nitric acid D D D D D D
Concentrated hydrochloric acid A A A B B B
Others, reducing agent, oxidizing agent
Chemical type PBN PPS PEEK PES PET PBT
Hydrogen peroxide 30% A A A A A A
Hypochlorous acid Na A A A A A A
Chloride Na saturated aqueous solution A A A A A A
A
No change (Weight change by 1% or less, tension rupture strength retention by 95% or more, no appearance change)
B
Slight change (Weight change by between 1% to 10%, tension rupture strength retention by between 95% to 70%, appearance changed)
C
Extensive change (Weight change by 10% or more, tension rupture strength retention by 70% or less, appearance extensively changed)
D
Dissoluved
