Polyphenylene Sulfide (PPS) Compound Resin ECOTRAN®

Introduction and Features

ECOTRAN® is the world's first non-chlorine and eco-friendly polyphenylene sulfide (PPS) resin by innovative process.


Teijin is developing PPS business under the strategic partnership with HDC POLYALL Co.,Ltd. in Korea. HDC POLYALL produces the world's first chlorine-free polyphenylene sulfide(PPS) resin by innovative process.


PPS resin is a partially crystalline polymer widely known as a super engineering plastic with outstanding performance such as heat resistance, excellent chemical resistance and inherent flame resistance.

By adopting HDC POLYALL's world first innovative process of PPS resin production, following advantages can be obtained compared to conventional PPS resins;

  1. 1.No chlorine components contained.
  2. 2.The process does not produce any by-products such as sodium chlorides which comes with conventional PPS resin.

HDC POLYALL will promote their PPS resin worldwide under the brand name of ECOTRAN® and Teijin will serve all Japanese customers by cooperation both companies resources and technologies.

Molecular structure of PPS resin
Heat resistance
Melting point at 280℃, glass transition point at 90℃
Mechanical strength
High mechanical strength and stiffness with content of fillers
Chemical resistance
Resists acid, alkali and solvents. No solvent to dissolve under 200℃
Flame retardance
UL94 V-0 rated without flame retardant agents
Dimensional stability
Low moisture absorption and low creep properties

Grade Lists

Grade lists of ECOTRAN®

Category Grade Feature
Non reinforced E2000TJ High impact (elastomer grade)
Reinforced Glass fiber
E1040GJ GF40% standard
E2130TJ GF30 High impact (elastomer grade)
High filler
E5060GJ GF/MF65% Standard
E2150TJ GF/MF50% High impact (elastomer grade)
  • *Schedule to expand grade lineups sequentially.

Engineering Service

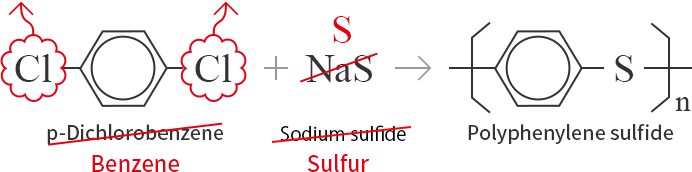

ECOTRAN® is the world's first chlorine-free and eco-friendly PPS, manufactured by using benzene and sulfur without any chlorine components.

Manufacturing process of chlorine-free PPS
