Polycarbonate resin Panlite® for UV-A transmission with weather resistance (Under development)
Teijin's UV-A transparent weather-resistant polycarbonate is an innovative material that transmits UV-A wavelengths of 330 nm or more while providing excellent weather resistance. It combines ease of processing with high impact resistance, making it suitable for a wide range of applications, including medical equipment and industrial filters.
Introduction
- About UV-A
UV-A (ultraviolet A) is an ultraviolet ray with a wavelength of approximately 320 to 400 nm. There are three types of ultraviolet rays: UV-A, UV-B, and UV-C. UV-A has the longest wavelength and accounts for about 90% of the ultraviolet rays that reach the earth's surface. UV-A is used in a variety of fields.
- Nondestructive testing:Black lights that utilize UV-A are used for non-destructive testing such as fluorescent penetrant testing and fluorescent magnetic particle testing. This allows for the detection of cracks particle testing.
- UV curing:A technology that uses UV-A to harden special resin materials. It is used in nail art, hardening dental materials, and hardening photoresists in the semiconductor manufacturing processes.
- Medical:UV-A is also used for skin treatment. e.g., treating psoriasis and atopic dermatitis.
- Sterilization and disinfection:UV-A is not as powerful as UV-C, but it can still be used for sterilization and disinfection under certain conditions.

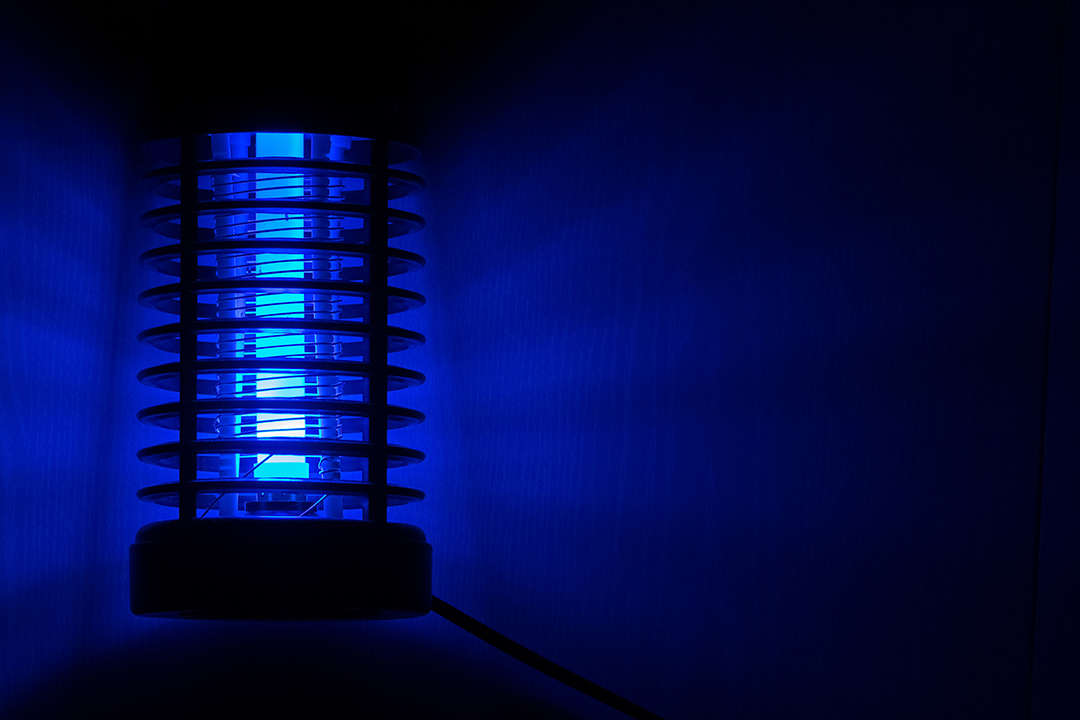

- Insect lamp:UV-A has the property of attracting insects, so UV-A lamps are widely used in insect traps and insect lamps.




About Teijin's UV-A transparent weather-resistant polycarbonate (Under development)

Polycarbonate is known as a material that transmits UV-A, but conventional weather-resistant polycarbonate does not transmit UV-A.
Teijin's UV-A transparent weather-resistant polycarbonate (Under development) is an innovative material that transmits wavelengths of 330 nm or more while also providing excellent weather resistance.
Quartz and PMMA(polymethyl methacrylate) are commonly used materials that transmit UV-A light, but the newly developed polycarbonate is easy to process and has high impact resistance, and is expected to be used in a wide range of applications, including medical equipment, insect lamp covers, and industrial filters.
