Charging Equipment × Advanced Engineering Plastics
"Empowering the future of charging infrastructure - through materials."
Overview
Teijins' polycarbonate resins, Panlite® and Multilon®, are advanced engineering plastics widely used across multiple industries. For EV charging equipment, we provide specialized grades with enhanced flame retardancy, weather resistance, and durability, designed to meet international standards* and withstand diverse environmental conditions.
As the adoption of electric vehicles accelerates toward a decarbonized society, demand for these high-performance materials is rapidly growing alongside the expansion of charging infrastructure.
Panlite® and Multilon® deliver reliable performance even under severe outdoor exposure, contributing to safer, more durable EV charging systems and supporting the development of a sustainable society.
- *Representative international standards for EV charging equipment:
- ・SAE J1772（UL2251、UL25949) ・IEC61851-1/-23、IEC62916-3 ・GB/T18487.1、GB/T20234-1/-2
Performance comparison for EV charging equipment
| Low temperature impact | Heat resistance | Flame resistance | Insulation | Thermal aging | UV resistance | Moldability | ||
|---|---|---|---|---|---|---|---|---|
| Aluminum / Steel | +++ | +++ | +++ | Conductive | +++ | +++ | - | |
| PBT+GF | - | +++ | + | +++ | ++ | + | +++ | |
| PA6+GF | - | +++ | + | +++ | ++ | - | +++ | |
| Panlite® | PC | ++ | +++ | +++ | ++ | ++ | ++ | ++ |
| Siloxane- copolymerized PC（Si-PC） |
+++ | ++ | +++ | ++ | +++ | +++ | ++ | |
| Multilon® | PC/ABS | + | + | ++ | ++ | + | + | +++ |
| PC/ASA | + | + | ++ | ++ | + | ++ | +++ | |
+++ Excellent ++ Very good + good - standard

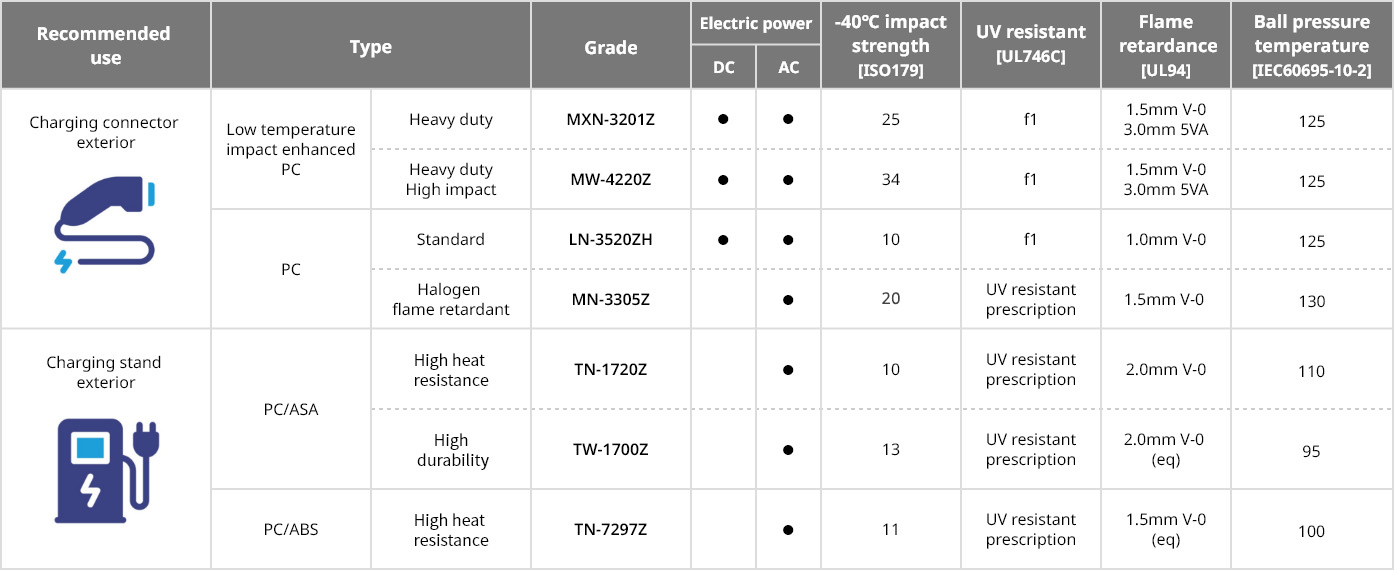

PC-based resin for EV charging equipment
| Type | UL94 | RTI temperature [℃] |
23℃ Charpy impact [kJ/㎡] |
-40℃ Charpy impact [kJ/㎡] |
|
|---|---|---|---|---|---|
| Panlite® | PC | V-0/5VA | 130 | 62 | 13 |
| Panlite® | Siloxane- copolymerized PC（Si-PC） |
V-0/5VA | 130 | 61 | 34 |
| Multilon® | PC/ABS | V-0 | 80 | 58 | 13 |
| Multilon® | PC/ASA | V-0 | 80 | 67 | 13 |
- Certified to UL standards V-0, 5VA, f1, RTI
A highly reliable grade compliant with international safety standards.

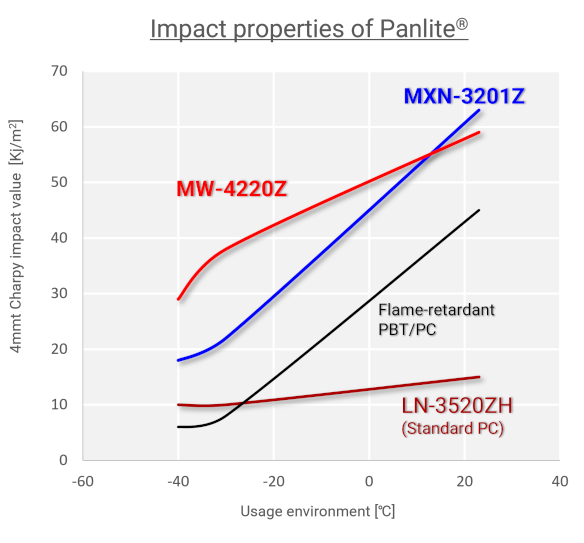

- High impact resistance even at -40℃
A tough material that maintains performance even in extremely cold environments.
- Does not contain bromine-based or antimony-based flame retardants
Clean flame-retardant design, mindful of environment and safety.
- Certified to CQC (China Quality Certification) and CMJ (Japan Electrical Appliance and
Material Safety Law)
Complies with CQC and CMJ, adaptable to regional regulations, and supports global deployment.
- Recycled grade with reliability ensured by UL746S certification
Environmentally friendly grade to achieve sustainable product design.
