Circular Materials (CM) Series

Mechanical Recycling Grade

Creating the Future with High-Quality Recycling
Teijin’s Mechanical Recycling Grade is a polycarbonate resin made from high-quality post-consumer recycled materials. Despite its high recycled content, it ensures product safety and reliability, providing peace of mind in use. This series contributes to reducing GHG (greenhouse gas) emissions and supports the realization of a sustainable society. It expands possibilities for environmentally conscious product development.

Electrical, Electronics, Telecommunications, and Industrial Equipment

Features

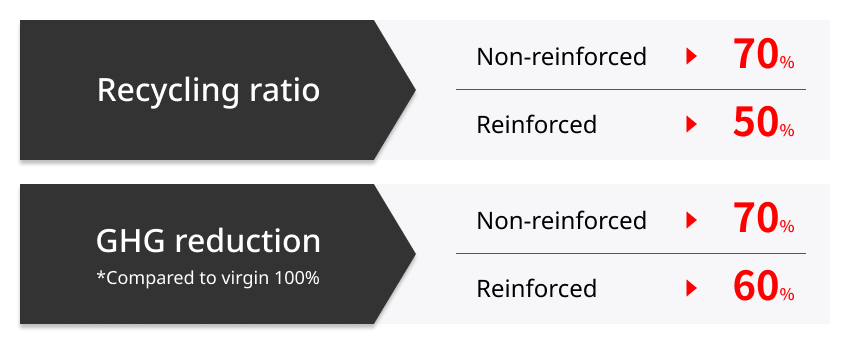

Teijin’s Mechanical Recycling grade achieves up to 70% recycled content for non-reinforced grades and up to 50% for reinforced grades. In terms of GHG (greenhouse gas) emission reduction, up to 70% reduction is possible for non-reinforced grades and up to 60% for reinforced grades.

High-Quality Post-Consumer Recycled Materials

  • Rigorous Quality Control
    • Inspection of RoHS-regulated substances (e.g., Br, Cd, Pb) for each lot Regular audits of recycling
    • suppliers to strengthen raw material and contamination management
  • Stable Supply System
    • Recycled sources procured from multiple suppliers across different countries.

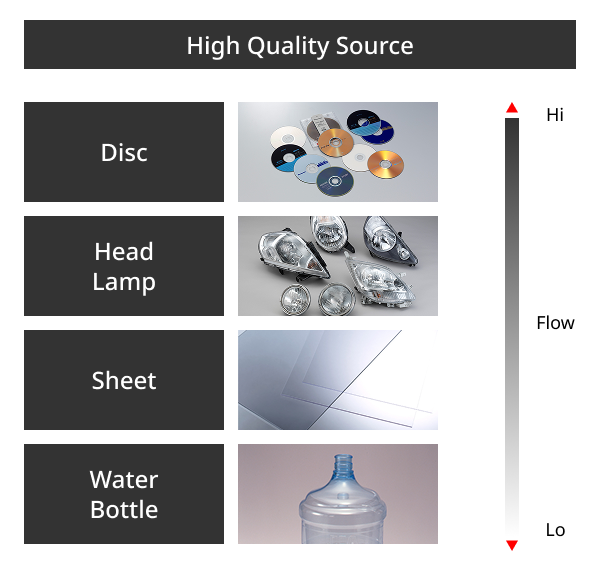

    • Utilization of transparent PC recovered from high-volume products such as water bottles, headlamps, and optical discs.

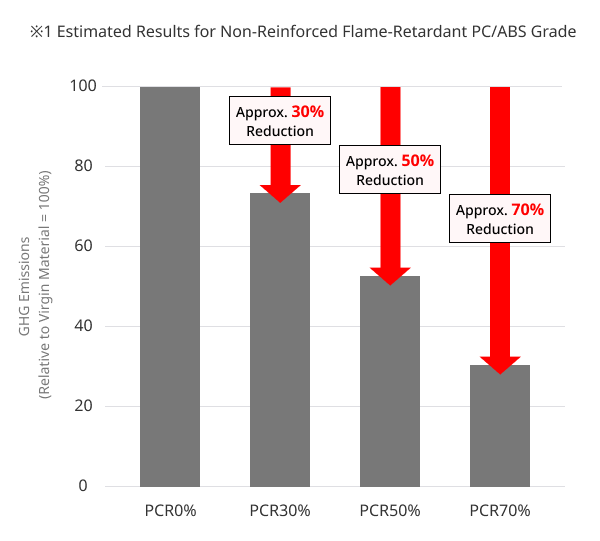

Greenhouse Gas (GHG) Reduction Effect

<Calculation Conditions>
  • Applicable Standards: ISO 14040 / ISO 14044
  • System Boundary: Cradle-to-gate
    (From crude oil extraction to domestic polymerization and shipment from domestic compounding plant)
<Data Basis>
  • PC: Primary data (third-party verified)
  • Other materials: Secondary data
    Note: CO₂ emissions from additives are not considered.
<Caution>
  • Please refrain from secondary use of these figures in isolation.
  • Calculation results are subject to change without prior notice.

CM Series Lineup

■Non-Reinforced Grades
Resin Type Properties PCR Content
(%)
UL94
V 5V
PC Flame-Retardant
(PFAS-Free)
30,50 -
Flame-Retardant
(PFBS-Free)
40,60
Heat & UV Resistant
(PFBS-Free)
40,60
Standard 30,50,70
Easy-Flow 40,60 -
High-Flow / UV Resistant 30,50,70
High-Impact / UV Resistant 30,50
PC/ABS High Heat Resistance 30,50
Standard 30,50
High-Impact 30,50
High-Flow 30,50
High-Impact / UV Resistant 30,50
High-Flow / UV Resistant 30,50
PC/ASA High-Impact / UV Resistant 30,40,50 -
■Reinforced Grades
Resin Type Flame-Retardant Reinforced Series PCR Content
(%)
UL94
V 5V
PC MF15% 30,50 -
MF25% 40,60 -
PC/ABS MF5% 30,40,50 -
MF15% 30,40,50 -
PC/AS MF20% 30,40,50
MF25%/High-Flow 30,40,50
MF25% 30,40,50
MF30% 30,50
MF+GF 40% 30,40 -
■Glass-Fiber Reinforced Grades
Resin Type Glass-Fiber Reinforced Series PCR Content
(%)
UL94
HB V
PC GF20% 30,50
GF30%・High-Impact 30,50
GF30%・Low Anisotropy 30,50
GF40% 30,50

Automotive, EV, Onboard Devices

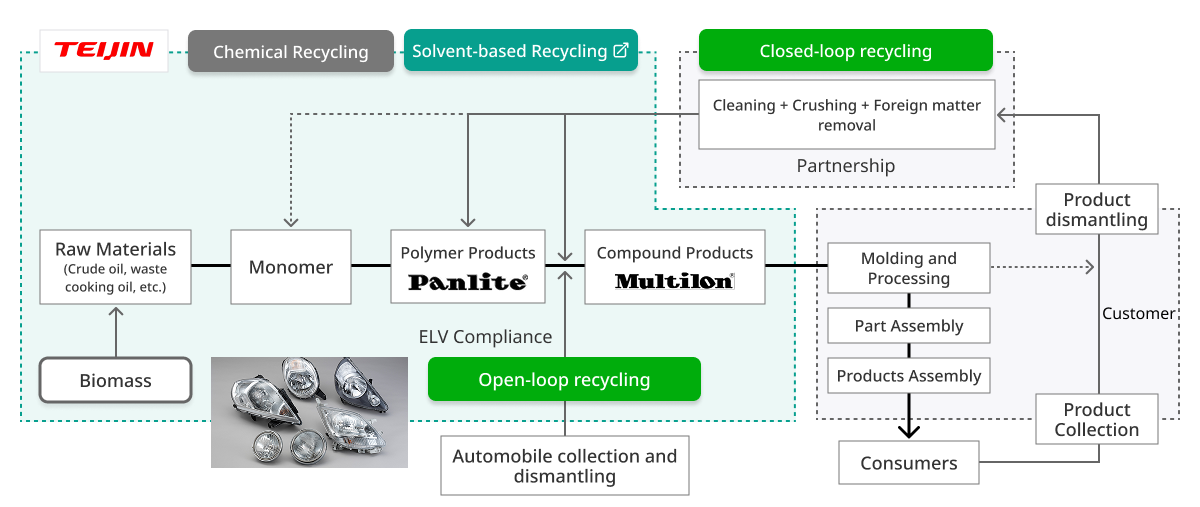

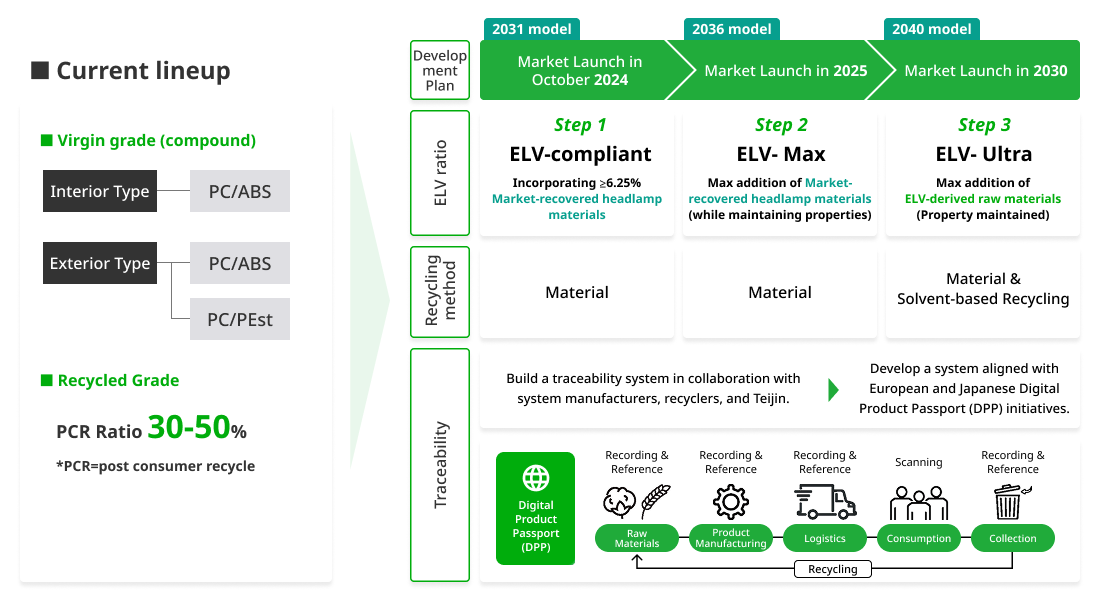

Teijin’s Strategy Based on the Proposed ELV Regulation

  • Teijin’s ELV-compliant grades are polycarbonate resins designed for open-loop recycling, utilizing high-quality recovered headlamp materials from end-of-life vehicles. These grades maintain virgin-equivalent quality even at high ELV content ratios.
  • Looking ahead, Teijin aims to promote not only open-loop recycling but also closed-loop mechanical recycling. Furthermore, for waste that is difficult to recycle mechanically, Teijin will implement solvent-based recycling to regenerate resources.

Automotive CM Series Lineup (PC/ABS)

Intended Applications Key Features PCR Content
(%)
ELV-compliant
Interior parts Low Odor & Low VOC High Heat Resistance 30
50
Standard 30
50
High-Flow 30
40
Anti-Squeak High Heat Resistance 30
50
Standard 30
45
High-Flow 30
35
Matte Finish 30
Exterior parts Electroplating 30
45
Low Linear Expansion 30
  • Discover more details in the document below
