Phosphorus Flame Retardant FCX-210

Introduction and Features

FCX-210 is a non-halogen flame retardant newly developed by Teijin.It has a different structure from the existing phosphate ester flame retardant and can apply high flame retardancy to various resin types. It also can be applied as an internal additive to paints and adhesives as well as plastics.

Features

High flame retardancy
Structure is different from phosphoric acid ester and offers high fire retardant effect.
Multi-resin applicability
Applicable to various resin types.
Transparency
Transparent flame retardancy can be achieved depends on resin types.
Hard solubility
Extremely low in water solubility and difficult to elute into water.
High heat resistance
Can be used for materials with high processing temperatures.
Lower addition amount
High in phosphorus content and flame retardancy can be added by only a relatively small amount.

Specification Table

  FCX-210 Commercial condensed phosphate ester
(CCPE)
Type Organic phosphorous compound Phosphate ester

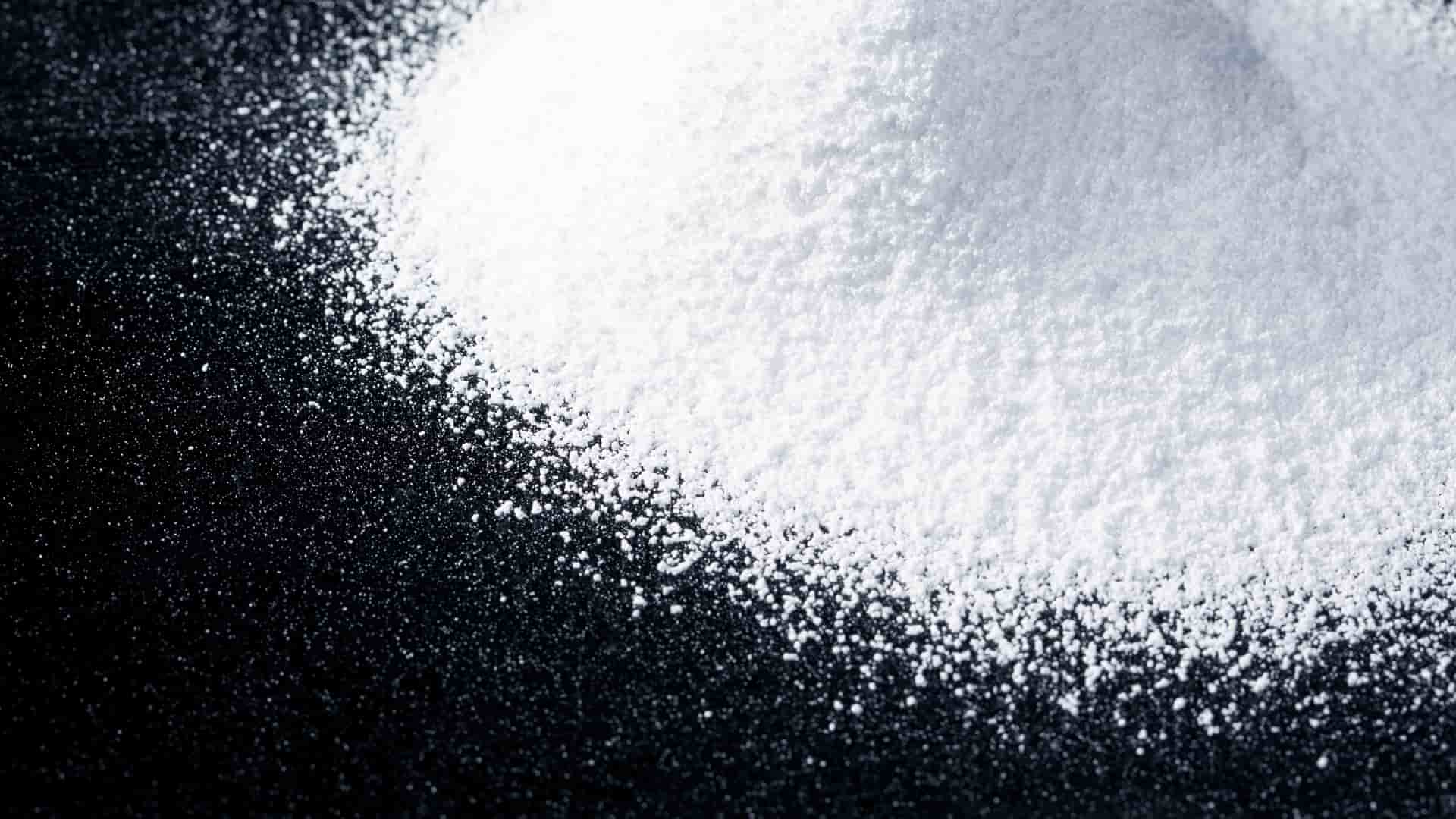

Exterior White powder White powder
Phosphorus content 15% 9%
Melting point >250℃ 95℃
Degradation temperature*1 >360℃ 350℃
  • *10% weight loss temperature measured by TGA under N2 Flow and 20℃/min heating rate condition.

Technical Information

HIPS uses

HIPS PPE*2 Flame retardant L.O.I Flame retardance*5 HDT
phr*1 phr type phr % rank (1/8) ℃
100 - - - 19.0 not V 80
100 10 - - 20.2 not V 83
100 - FCX-210 10 22.2 V-2 80
100 10 FCX-210 25 25.2 V-0 87
100 - TPP*3 10 21.2 V-2 69
100 10 TPP*3 30 - V-2 -
100 - CCPE*4 10 - V-2 -
100 10 CCPE*4 30 - V-2 -
  1. *1phr : per hundred resin
  2. *2PPE : Polyphenylene ether
  3. *3TPP : Triphenyl Phosphate
  4. *4Commercial Condensed Phosphate Ester
  5. *5UL-94 Flame retardant test

PBT uses

PBT Flame retardant L.O.I Flame retardance*4 HDT
phr*1 type phr % rank (1/16) rank (1/32) ℃
100 - - 22.2 not V not V 55
100 FCX-210 15 27.3 V-0 V-0 53
100 TPP*2 20 25.5 V-2 V-2 59
100 CCPE*3 20 24.8 V-2 V-2 57
  1. *1phr : per hundred resin
  2. *2TPP : Triphenyl Phosphate
  3. *3Commercial Condensed Phosphate Ester
  4. *4UL-94 Flame retardant test

PMMA uses

PMMA*1 Flame retardant Flame retardance*2 Total light transmittance*3 Haze*3 YI value*3 HDT*4 Pencil hardness*5
phr*6 type phr rank (1.6mmt) % % - ℃ rank
100 - - not V 92.9 0.5 0.7 92 2H
100 FCX-210 15 V-2 92.5 0.5 0.8 76 2H
100 CCPE*7 15 not V 92.3 0.5 1.2 79 2H
  1. *1ACRYPET VH-001 / Mitsubishi Chemical Corporation
  2. *2UL-94 Flame retardant test
  3. *3Thickness : 2mmt
  4. *4HDT : 1.8MPa
  5. *5Under a load of 750g
  6. *6phr : per hundred resin
  7. *7Commercial Condensed Phosphate Ester

Polyolefin(PP)application

PP PTFE Flame retardant Flame retardance*1
phr phr type phr 1.6mmt 3.2mmt
100 - - - notV notV
80 - FCX-210 20 V-2 V-2
70 - FCX-210 30 V-2 V-2
69.5 0.5 FCX-210 20 V-0 V-0
  1. *1UL-94 Flame retardant test

Solubility of FCX-210 in solvents

Solvents Solubility (g/100g solvents)
20℃ 40℃ 60℃ 80℃
Water <0.01 - - -
Methanol 0.54 1.00 - -
Ethanol 0.15 0.32 0.71 -
Acetone 0.07 0.22 - -
Acetonitrile 0.36 0.61 1.23 -
Dichloromethane 0.49 - - -
Ethyl acetate 0.02 - - -
Methyl ethyl ketone (MEK) 0.06 - - -
Chloroform 0.82 - - -
Toluene <0.01 - - 0.09
Xylene (mix) 0.01 - - -
o-Xylene 0.01 - 0.02 0.06
m-Xylene 0.01 - 0.01 0.10
p-Xylene 0.01 - 0.04 0.08
Chlorobenzene 0.03 - 0.06 0.11
Ethylbenzene 0.01 - 0.04 0.08
Dimethyl sulfoxide (DMSO) 3.6 - - -
N,N-dimethylformamide (DMF) 2.04 - - -
  • *Above data is reference values, not guaranteed values.

Related control Regulations

  • *Registered: Chemical Review Law (Japan), TSCA (US), NPC (China), ECN (China Taiwan), CSCL (Korea),REACH (EU)
