Polycarbonate Resin Panlite® Sheet & Film
Standard grades
Standard grades
Grade
PC-1151、PC-2151
Characteristics
- Impact property
Impact strength approximately 250 times that of glass and approximately 30 times that of acrylic
- Heat resistance
Wide actual operating temperature range from approximately -40℃ to 125℃
- Transparency
High transparency like glass
- Forming processability
Easy processing, such as cutting and hole making
- Dimension stability
Superior creep property and less dimensional change even after long-term use
- Electric property
Wide temperature range and superior insulation property
Examples of Panlite sheets and films in use

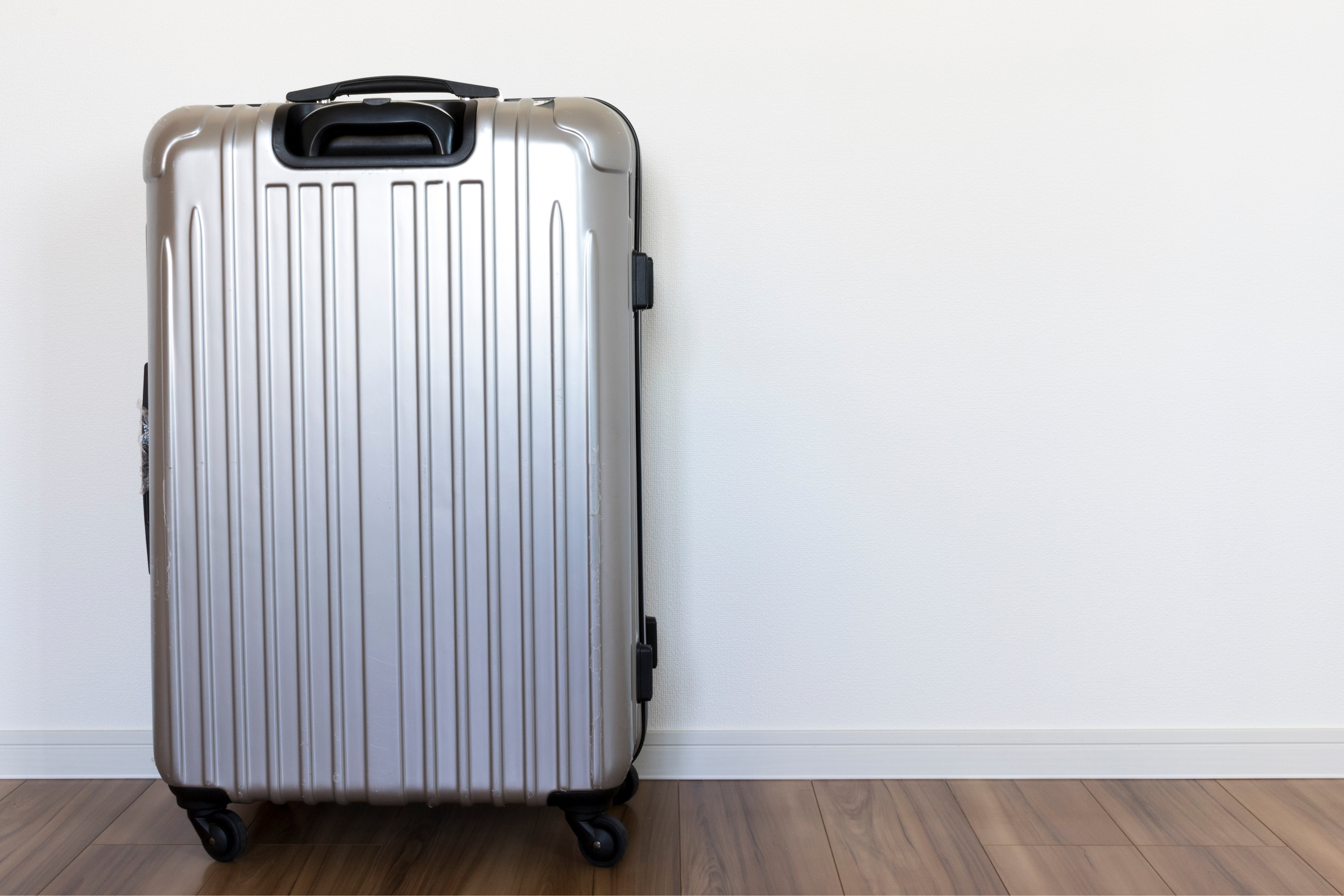

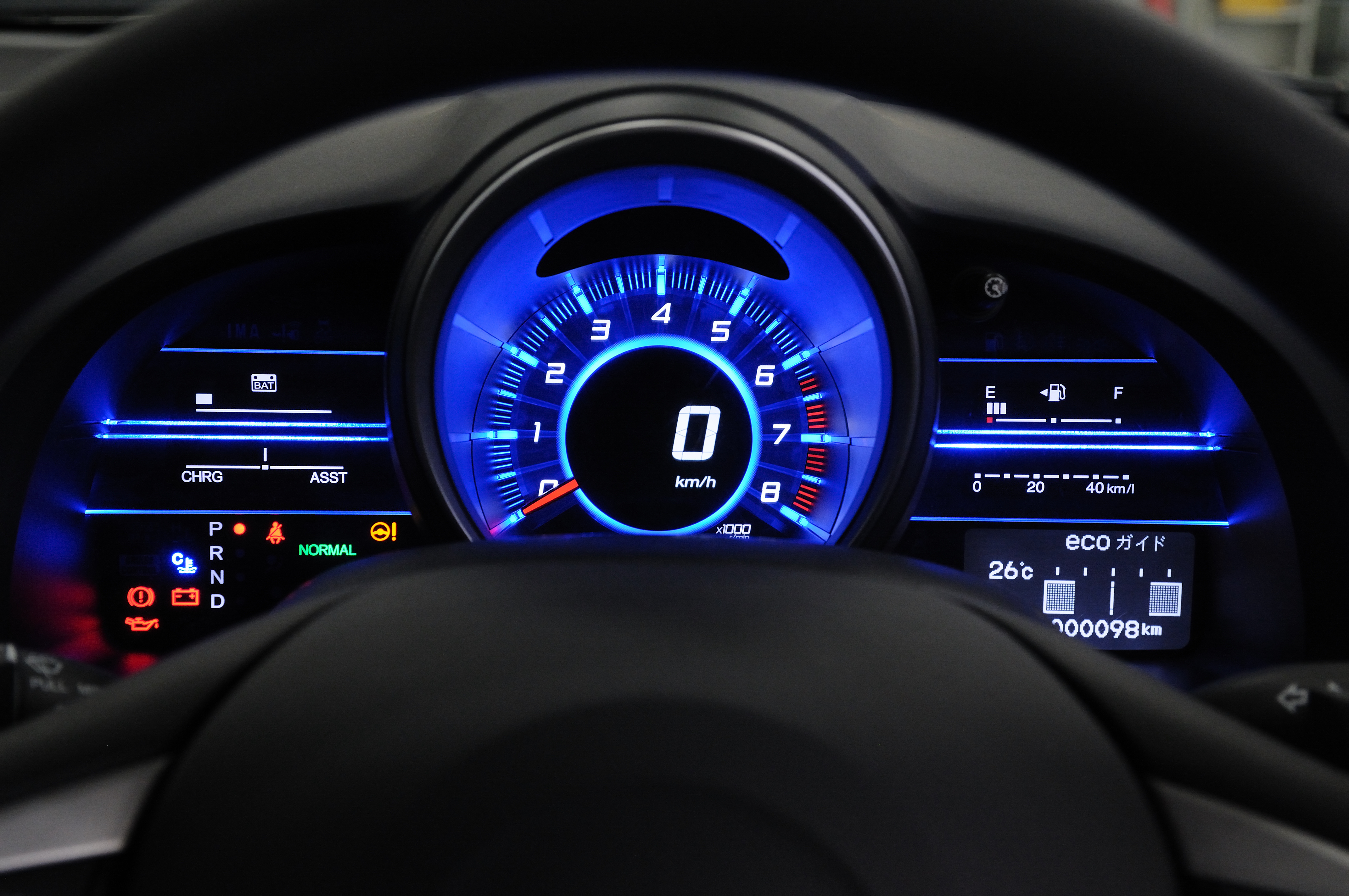

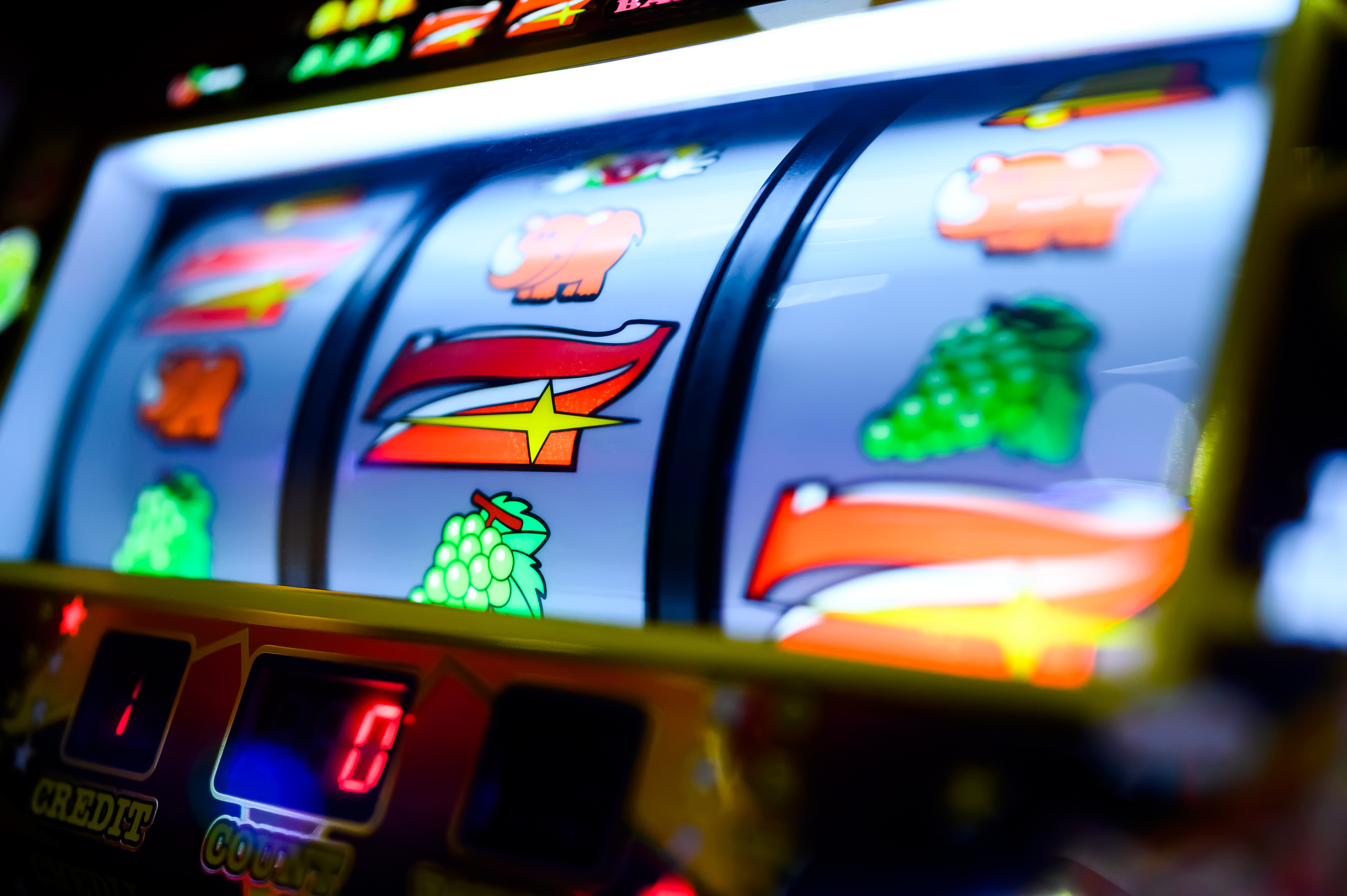

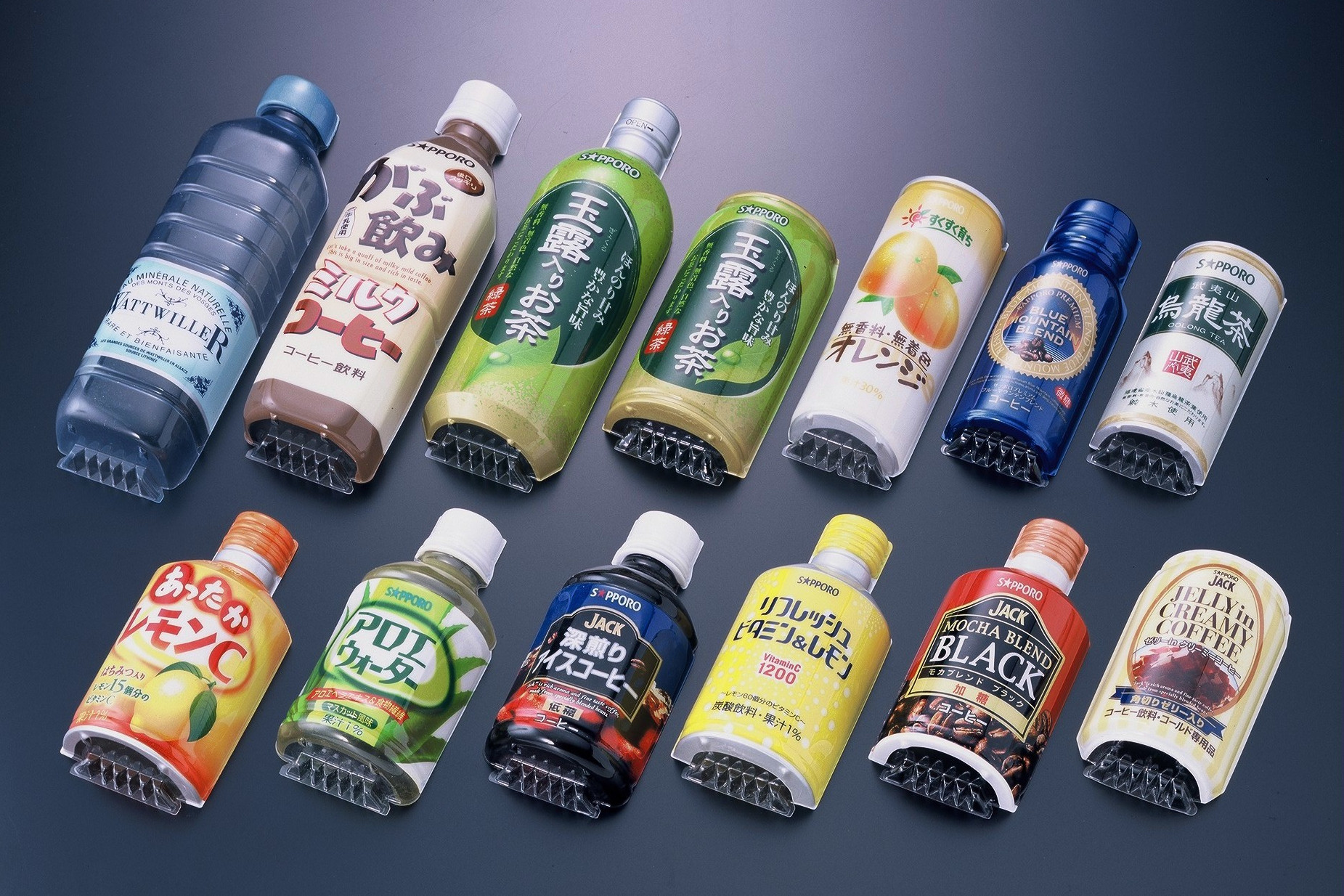

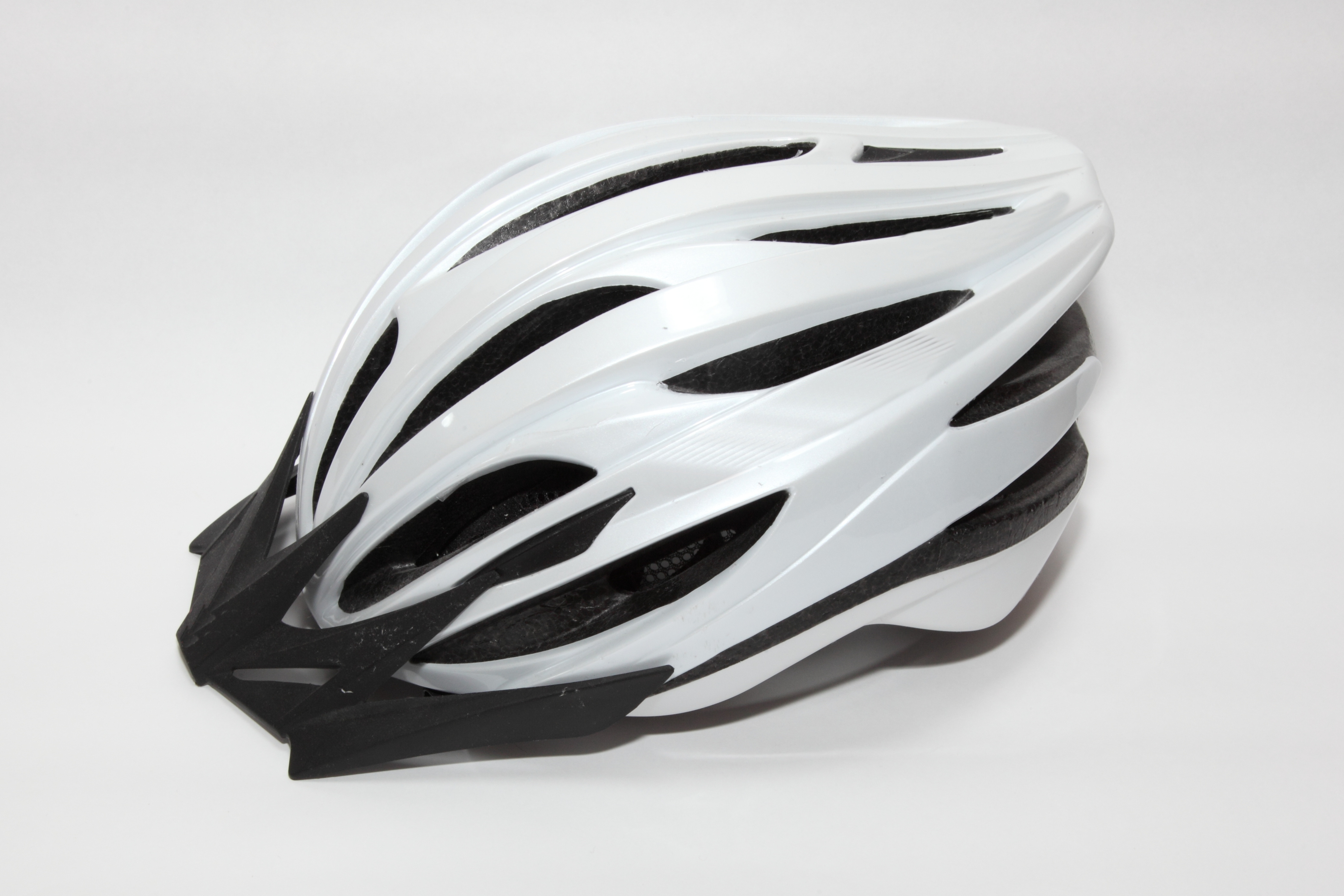

Automotive meter dial Radio-controlled car body Sports helmets Dummy bottles in vending machines Suitcase exteriors Slot machine reels Physical Properties
Property Unit Test method Measurement conditions Measured value Temperature index Density kg/m3 ISO 1183 - 1,200 Water absorption % ISO 62 23°C in water for 24h 0.2 Total light transmittance % ISO 13468-1 1mm thick 89.5 Refractive index - ISO 489 - 1.585 Pencil hardness - ISO 15184 7.4N 2B Heat deflection temperature ℃ ISO 75-1
and
ISO 75-2Load 1.80MPa 129 Load 0.45MPa 142 Coefficient of linear expansion ×10-5/℃ ISO 11359-2 - 7 - *The values in the above table are measured, not guaranteed values
Standard Grade List
Standard Plate Size
Grade Size
Width × Length (mm)Thickness (mm) 0.2 0.3 0.4 0.5 0.7 0.8 1.0 1.2 1.5 2.0 PC-1151 915×1,830 - - - 〇 - 〇 〇 - - - 1,000×2,000 - - 〇 〇 〇 〇 〇 〇 〇 〇* PC-2151 1,050×2,000 〇 〇 - - - - - - - - - *2.0mm×1,050×2,050
Standard Roll Size
Grade Size 0.125 0.18 0.2 0.25 0.3 PC-2151 Width (mm)
Length (M)1,000×
400M1,050×
350M1,050×
300M1,050×
250M1,050×
250M- *With masking film on both sides
- *Please contact us for sizes other than the above.
- Forming processability
Grade
PC-1111,PC-1411,PC-1611,PC-1711
Characteristics
- A grade with added ultraviolet absorber and superior weather resistance
- Products colored in gray, brown, and green are also available.
- Suitable for the roofs of construction machinery and motorcycle windshields


Thickness Lineup
Thickness | PC-1111 (Clear) |
PC-1411 (Transparent) |
PC-1611 (Brown) |
PC-1711 (Grey) |
---|---|---|---|---|
2mm | 〇 | 〇 | - | - |
3mm | 〇 | 〇 | 〇 | 〇 |
4mm | 〇 | 〇 | 〇 | 〇 |
5mm | 〇 | 〇 | 〇 | 〇 |
6mm | 〇 | - | 〇 | - |
8mm | 〇 | 〇 | 〇 | 〇 |
10mm | 〇 | 〇 | - | - |
- *Please contact us for sizes
Physical Properties
Properties | Unit | Test method | Measurement conditions | Measured value Temperature index |
---|---|---|---|---|
Density | kg/m3 | ISO 1183 | - | 1,200 |
Water absorption | % | ISO 62 | 23°C in water for 24h | 0.2 |
Total light transmittance | % | ISO 13468-1 | 3.0mm thick | 88.7 |
Refractive index | - | ISO 489 | - | 1.585 |
Pencil hardness | - | ISO 15184 | 7.4N | 2B |
Heat deflection temperature | ℃ | ISO 75-1 and ISO 75-2 |
Load 1.80MPa | 129 |
Load 0.45MPa | 142 | |||
Coefficient of linear expansion | ×10-5/℃ | ISO 11359-2 | - | 7 |
- *The values in the above table are measured, not guaranteed values
